Visualización de costos de Azure en Astro: una solución práctica
Daniel J. Saldaña
- 15 de diciembre de 2024
- Puntuación de feedback

Durante el desarrollo del proyecto Goliat - Dashboard, una herramienta de código abierto para gestionar y optimizar despliegues de Terraform, surgió una necesidad específica: identificar los costos asociados a recursos en Azure que estén etiquetados con información específica, como el nombre de una organización o un identificador de proyecto.
Las etiquetas en Azure permiten clasificar recursos, lo que facilita la administración de costos por equipo, proyecto o entorno. Para aprovechar esta capacidad, desarrollé una solución que permite:
- Buscar resource groups (RG) que contienen una etiqueta específica.
- Obtener los costos de esos resource groups.
- Visualizar esos costos segmentados por grupo de recursos, ubicación y nivel de servicio.
Esta solución se compone de:
- Un endpoint en Astro para consultar Azure y devolver datos de costos filtrados por etiquetas.
- Un componente React para visualizar los datos de manera clara y segmentada.
¿Qué ofrece esta solución?
- Filtrado preciso: identifica y analiza solo los resource groups que contienen una etiqueta específica.
- Monitoreo en tiempo real: consulta actualizada directamente desde Azure.
- Visualización clara: muestra gráficos segmentados por:
- Resource group.
- Ubicación.
- Nivel de servicio (tier).
- Cacheo inteligente: guarda resultados en MongoDB para evitar consultas repetidas y mejorar el rendimiento.
1. Crear el endpoint en Astro
¿Qué hace el endpoint?
El endpoint se conecta a las APIs de Azure y realiza lo siguiente:
- Busca todos los resource groups dentro de las suscripciones disponibles.
- Filtra aquellos resource groups que contengan una etiqueta específica, como
organization
,workspace
oprojectId
. - Obtiene los costos asociados a esos resource groups utilizando el servicio de cost management de Azure.
- Devuelve los datos en formato JSON para que puedan ser consumidos por el componente React.
¿Dónde crear el endpoint?
- Crea un archivo en la siguiente ruta de tu proyecto Astro:
import { methodValidator } from '../utils/methodValidator';import { log } from '../utils/logging';import { ClientSecretCredential } from '@azure/identity';import { SubscriptionClient } from '@azure/arm-subscriptions';import { ResourceManagementClient } from '@azure/arm-resources';import { CostManagementClient } from '@azure/arm-costmanagement';import getDatabase from '../utils/mongoClient';
const TENANT_ID = import.meta.env.AZURE_TENANT_ID as string;const CLIENT_ID = import.meta.env.AZURE_CLIENT_ID as string;const CLIENT_SECRET = import.meta.env.AZURE_CLIENT_SECRET as string;
const credential = new ClientSecretCredential(TENANT_ID, CLIENT_ID, CLIENT_SECRET);
const getSubscriptions = async () => { log('Fetching subscriptions...', 'DEBUG'); const client = new SubscriptionClient(credential); const subscriptions = []; for await (const subscription of client.subscriptions.list()) { subscriptions.push(subscription); } log(`Fetched ${subscriptions.length} subscriptions.`, 'DEBUG'); return subscriptions;};
const getResourceGroups = async (subscriptionId: string) => { log(`Fetching resource groups for subscription: ${subscriptionId}`, 'DEBUG'); const client = new ResourceManagementClient(credential, subscriptionId); const resourceGroups = []; for await (const rg of client.resourceGroups.list()) { resourceGroups.push(rg); } log(`Fetched ${resourceGroups.length} resource groups for subscription ${subscriptionId}.`, 'DEBUG'); return resourceGroups;};
const getCostData = async (subscriptionId: string, resourceGroupName: string) => { log(`Fetching cost data for resource group: ${resourceGroupName} in subscription: ${subscriptionId}`, 'DEBUG'); const costClient = new CostManagementClient(credential); const result = await costClient.query.usage(`/subscriptions/${subscriptionId}/resourceGroups/${resourceGroupName}`, { type: 'ActualCost', timeframe: 'BillingMonth', dataset: { granularity: 'None', aggregation: { totalCost: { name: 'PreTaxCost', function: 'Sum', }, }, grouping: [ { type: 'Dimension', name: 'ServiceName', }, { type: 'Dimension', name: 'ResourceLocation', }, { type: 'Dimension', name: 'MeterSubCategory', }, ], }, }); log(`Fetched cost data for resource group ${resourceGroupName}: ${JSON.stringify(result)}`, 'DEBUG'); return result;};
export const GET = async ({ request }: { request: Request }) => { const url = new URL(request.url); const organization = url.searchParams.get('organization'); const workspace = url.searchParams.get('workspace'); const projectId = url.searchParams.get('projectId');
log('Received GET request.', 'DEBUG');
if (!methodValidator(request, ['GET'])) { log('Invalid method used. Only GET is allowed.', 'ERROR'); return new Response(JSON.stringify({ error: 'Method Not Allowed' }), { status: 405, headers: { 'Content-Type': 'application/json' }, }); }
if (!organization) { log('Organization parameter is missing.', 'ERROR'); return new Response(JSON.stringify({ error: 'Organization is required.' }), { status: 400, headers: { 'Content-Type': 'application/json' }, }); }
if ((workspace && projectId) || (!workspace && !projectId)) { log('Invalid parameters: Provide either workspace or projectId, but not both.', 'ERROR'); return new Response( JSON.stringify({ error: 'Provide either workspace or projectId, but not both.', }), { status: 400, headers: { 'Content-Type': 'application/json' }, } ); }
try { log('Checking database connection', 'DEBUG'); const db = await getDatabase(); const identifier = workspace || projectId || '';
if (db) { log(`Checking cached data for organization: ${organization}, identifier: ${identifier}`, 'DEBUG'); const collection = db.collection('azure_cost_data'); const cachedData = await collection.findOne({ organization, identifier, }); if (cachedData) { log(`Returning cached data for organization: ${organization}, identifier: ${identifier}`, 'DEBUG'); return new Response(JSON.stringify(cachedData), { status: 200, headers: { 'Content-Type': 'application/json' }, }); } } else { log('Database not available, proceeding without caching.', 'DEBUG'); }
log('Fetching subscriptions...', 'DEBUG'); const subscriptions = await getSubscriptions();
const results: Record< string, { organization: string; identifier: string; totalAllRGs?: string; totalAllRGsByLocation?: Record<string, string>; totalAllRGsByTier?: Record<string, string>; resourceGroups: Array<{ resourceGroupName: string; totalCost: string; costByCategory: Record<string, string>; costByLocation: Record<string, string>; costByTier: Record<string, string>; }>; } > = {};
results[identifier] = { organization, identifier, resourceGroups: [] };
let totalCostSum = 0; let costCurrency: string | null = null; const totalCostByLocation: Record<string, number> = {}; const totalCostByTier: Record<string, number> = {};
for (const subscription of subscriptions) { const subscriptionId = subscription.subscriptionId; if (!subscriptionId) { log('Subscription ID is undefined.', 'ERROR'); continue; } log(`Processing subscription: ${subscriptionId}`, 'DEBUG'); const resourceGroups = await getResourceGroups(subscriptionId);
const matchingResourceGroups = resourceGroups.filter((rg: any) => { const tags = rg.tags || {}; return ( tags.organization === organization && ((workspace && tags.workspace === workspace) || (projectId && tags.projectId === projectId)) ); }); log(`Found ${matchingResourceGroups.length} matching resource groups.`, 'DEBUG');
for (const rg of matchingResourceGroups) { try { const resourceGroupName = rg.name; if (!resourceGroupName) { log(`Resource group name is undefined for subscription ${subscriptionId}`, 'ERROR'); continue; } const costData = await getCostData(subscriptionId, resourceGroupName); log(`Cost data response for ${resourceGroupName}: ${JSON.stringify(costData)}`, 'DEBUG'); if (!costData || !costData.columns || !costData.rows) { log('No columns or rows in cost data result.', 'ERROR'); continue; } const costIndex = costData.columns.findIndex((col: any) => col.name === 'PreTaxCost'); const serviceNameIndex = costData.columns.findIndex((col: any) => col.name === 'ServiceName'); const locationIndex = costData.columns.findIndex((col: any) => col.name === 'ResourceLocation'); const tierIndex = costData.columns.findIndex((col: any) => col.name === 'MeterSubCategory'); const currencyIndex = costData.columns.findIndex((col: any) => col.name === 'Currency');
let rgTotalCost = 0; let currency = ''; const costByCategory: Record<string, number> = {}; const costByLocation: Record<string, number> = {}; const costByTier: Record<string, number> = {};
for (const row of costData.rows) { const cost = row[costIndex]; const serviceName = row[serviceNameIndex]; const resourceLocation = row[locationIndex]; const tier = row[tierIndex] || 'No Tier Info'; currency = row[currencyIndex]; rgTotalCost += cost; costByCategory[serviceName] = (costByCategory[serviceName] || 0) + cost; costByLocation[resourceLocation] = (costByLocation[resourceLocation] || 0) + cost; costByTier[tier] = (costByTier[tier] || 0) + cost; }
if (!costCurrency) { costCurrency = currency; }
totalCostSum += rgTotalCost;
for (const [location, cost] of Object.entries(costByLocation)) { totalCostByLocation[location] = (totalCostByLocation[location] || 0) + cost; }
for (const [tier, cost] of Object.entries(costByTier)) { totalCostByTier[tier] = (totalCostByTier[tier] || 0) + cost; }
const formattedTotalCost = new Intl.NumberFormat('es-ES', { style: 'currency', currency: currency, }).format(rgTotalCost);
const formattedCostByCategory: Record<string, string> = {}; for (const [serviceName, cost] of Object.entries(costByCategory)) { formattedCostByCategory[serviceName] = new Intl.NumberFormat('es-ES', { style: 'currency', currency: currency, }).format(cost); }
const formattedCostByLocation: Record<string, string> = {}; for (const [location, cost] of Object.entries(costByLocation)) { formattedCostByLocation[location] = new Intl.NumberFormat('es-ES', { style: 'currency', currency: currency, }).format(cost); }
const formattedCostByTier: Record<string, string> = {}; for (const [tier, cost] of Object.entries(costByTier)) { formattedCostByTier[tier] = new Intl.NumberFormat('es-ES', { style: 'currency', currency: currency, }).format(cost); }
results[identifier].resourceGroups.push({ resourceGroupName, totalCost: formattedTotalCost, costByCategory: formattedCostByCategory, costByLocation: formattedCostByLocation, costByTier: formattedCostByTier, }); } catch (error) { log(`Error processing resource group ${rg.name}: ${error}`, 'ERROR'); } } }
if (results[identifier].resourceGroups.length === 0) { log('No matching resource groups found.', 'ERROR'); return new Response(JSON.stringify({ error: 'No matching resource groups found.' }), { status: 404, headers: { 'Content-Type': 'application/json' }, }); }
if (costCurrency) { results[identifier].totalAllRGs = new Intl.NumberFormat('es-ES', { style: 'currency', currency: costCurrency, }).format(totalCostSum);
const formattedTotalAllRGsByLocation: Record<string, string> = {}; for (const [location, cost] of Object.entries(totalCostByLocation)) { formattedTotalAllRGsByLocation[location] = new Intl.NumberFormat('es-ES', { style: 'currency', currency: costCurrency, }).format(cost); } results[identifier].totalAllRGsByLocation = formattedTotalAllRGsByLocation;
const formattedTotalAllRGsByTier: Record<string, string> = {}; for (const [tier, cost] of Object.entries(totalCostByTier)) { formattedTotalAllRGsByTier[tier] = new Intl.NumberFormat('es-ES', { style: 'currency', currency: costCurrency, }).format(cost); } results[identifier].totalAllRGsByTier = formattedTotalAllRGsByTier; }
if (db) { log(`Caching data for organization: ${organization}, identifier: ${identifier}`, 'DEBUG'); const collection = db.collection('azure_cost_data'); await collection.updateOne({ organization, identifier }, { $set: results[identifier] }, { upsert: true }); }
return new Response(JSON.stringify(results[identifier]), { status: 200, headers: { 'Content-Type': 'application/json' }, }); } catch (error: unknown) { log(`Internal server error: ${error instanceof Error ? error.stack : String(error)}`, 'ERROR'); return new Response(JSON.stringify({ error: 'Internal server error' }), { status: 500, headers: { 'Content-Type': 'application/json' }, }); }};
Copia el código del endpoint en ese archivo. Este código manejará la búsqueda de resource groups etiquetados y la consulta de costos a Azure.
Configura las variables de entorno en el archivo
.env
:AZURE_TENANT_ID=your-tenant-idAZURE_CLIENT_ID=your-client-idAZURE_CLIENT_SECRET=your-client-secretInstala las dependencias necesarias para conectar con Azure y MongoDB:
Terminal window npm install @azure/identity @azure/arm-subscriptions @azure/arm-resources @azure/arm-costmanagement mongodb
2. Crear el componente en React
¿Qué hace el componente?
El componente React se encarga de:
- Consultar el endpoint para obtener los costos de los resource groups filtrados por etiquetas.
- Mostrar el estado de carga y los posibles errores.
- Visualizar los datos en gráficos tipo doughnut usando Chart.js:
- Costos por resource group.
- Costos por ubicación.
- Costos por nivel de servicio (tier).
¿Dónde crear el componente?
- Crea el archivo del componente en:
import React, { useEffect, useState } from 'react';import { Doughnut } from 'react-chartjs-2';import { FaSpinner } from 'react-icons/fa';import { Chart as ChartJS, ArcElement, Tooltip, Legend } from 'chart.js';
ChartJS.register(ArcElement, Tooltip, Legend);
export default function WorkspaceCostsController({ organization, workspace }) { const [data, setData] = useState(null); const [loading, setLoading] = useState(true); const [error, setError] = useState(null);
const fetchData = async () => { setLoading(true); setError(null); try { const url = `/api/private/azureCost?organization=${organization}&workspace=${workspace}`; const response = await fetch(url); if (!response.ok) { const errorText = await response.text(); throw new Error(`Error fetching data: ${errorText}`); } const jsonData = await response.json(); setData(jsonData); } catch (err) { setError(err.message); } finally { setLoading(false); } };
useEffect(() => { fetchData(); }, [organization, workspace]);
if (loading) { return ( <div className="flex h-64 items-center justify-center"> <FaSpinner className="animate-spin text-2xl text-gray-900 dark:text-white" /> </div> ); }
if (error) { return <p className="text-red-500">Error: {error}</p>; }
if (!data) { return <p className="text-gray-500 dark:text-gray-400">No data available</p>; }
const { totalAllRGs, totalAllRGsByLocation, totalAllRGsByTier, resourceGroups } = data;
const isDarkMode = document.documentElement.classList.contains('dark'); const textColor = isDarkMode ? '#F9FAFB' : '#1F2937'; const borderColor = isDarkMode ? '#4B5563' : '#D1D5DB';
const parseEuroValue = (val) => { if (!val) return 0; let numericString = val.replace(/[^\d.,-]/g, ''); numericString = numericString.replace(',', '.'); const numberValue = parseFloat(numericString); return isNaN(numberValue) ? 0 : numberValue; };
const formatEuro = (value) => { return new Intl.NumberFormat('es-ES', { style: 'currency', currency: 'EUR', }).format(value); };
const generateRandomPastelColor = () => { const hue = Math.floor(Math.random() * 360); const base = `hsl(${hue}, 70%, 80%)`; const hover = `hsl(${hue}, 70%, 60%)`; return { base, hover }; };
const generateDoughnutData = (obj) => { const entries = Object.entries(obj || {}); const filteredEntries = entries.filter(([_, val]) => parseEuroValue(val) !== 0);
if (filteredEntries.length === 0) { return null; }
const labels = filteredEntries.map(([key]) => key); const values = filteredEntries.map(([_, val]) => parseEuroValue(val));
const backgroundColors = []; const hoverBackgroundColors = [];
labels.forEach(() => { const { base, hover } = generateRandomPastelColor(); backgroundColors.push(base); hoverBackgroundColors.push(hover); });
return { labels, datasets: [ { data: values, backgroundColor: backgroundColors, hoverBackgroundColor: hoverBackgroundColors, borderColor: borderColor, borderWidth: 2, }, ], }; };
const locationData = totalAllRGsByLocation ? generateDoughnutData(totalAllRGsByLocation) : null; const tierData = totalAllRGsByTier ? generateDoughnutData(totalAllRGsByTier) : null;
let rgData = null; if (resourceGroups && resourceGroups.length > 0) { const rgObj = {}; resourceGroups.forEach((rg) => { if (rg.totalCost) { rgObj[rg.resourceGroupName] = rg.totalCost; } }); rgData = generateDoughnutData(rgObj); }
const doughnutOptions = { responsive: true, maintainAspectRatio: false, layout: { padding: { top: 10, bottom: 10, }, }, plugins: { legend: { position: 'bottom', labels: { color: textColor, }, }, tooltip: { bodyColor: textColor, titleColor: textColor, backgroundColor: isDarkMode ? '#374151' : '#ffffff', callbacks: { label: function (context) { const label = context.label || ''; const value = context.parsed; return `${label}: ${formatEuro(value)}`; }, }, }, }, };
return ( <div className="mt-6"> <div className="grid w-full grid-cols-1 gap-4 xl:grid-cols-3"> <div className="relative flex flex-col rounded-lg border border-gray-200 bg-white p-4 shadow dark:border-gray-700 dark:bg-gray-800"> <h3 className="mb-2 text-lg font-medium text-gray-900 dark:text-white">Cost by Resource Group</h3> <p className="mb-4 text-sm text-gray-600 dark:text-gray-400">Cost breakdown by each resource group.</p> <div className="h-64"> {rgData ? ( <Doughnut data={rgData} options={doughnutOptions} /> ) : ( <p className="text-gray-500 dark:text-gray-400">No data</p> )} </div> </div>
<div className="relative flex flex-col rounded-lg border border-gray-200 bg-white p-4 shadow dark:border-gray-700 dark:bg-gray-800"> <h3 className="mb-2 text-lg font-medium text-gray-900 dark:text-white">Cost by Location</h3> <p className="mb-4 text-sm text-gray-600 dark:text-gray-400">Cost breakdown by resource region.</p> <div className="h-64"> {locationData ? ( <Doughnut data={locationData} options={doughnutOptions} /> ) : ( <p className="text-gray-500 dark:text-gray-400">No data</p> )} </div> </div>
<div className="relative flex flex-col rounded-lg border border-gray-200 bg-white p-4 shadow dark:border-gray-700 dark:bg-gray-800"> <h3 className="mb-2 text-lg font-medium text-gray-900 dark:text-white">Cost by Tier</h3> <p className="mb-4 text-sm text-gray-600 dark:text-gray-400">Cost breakdown by service tier.</p> <div className="h-64"> {tierData ? ( <Doughnut data={tierData} options={doughnutOptions} /> ) : ( <p className="text-gray-500 dark:text-gray-400">No data</p> )} </div> </div> </div> </div> );}
Copia el código del componente en ese archivo.
Instala las dependencias necesarias para los gráficos y los íconos de carga:
Terminal window npm install react-chartjs-2 chart.js react-icons
3. Integrar el componente en una página de Astro
Para mostrar el dashboard de costos en tu aplicación Astro:
Crea una página Astro en:
src/pages/costos.astroImporta el componente y pásale los parámetros necesarios, como
organization
yworkspace
:---import WorkspaceCostsController from '../components/WorkspaceCostsController';const organization = 'nombre-de-tu-organizacion';const workspace = 'nombre-de-tu-workspace';---<h1>Dashboard de costos de Azure</h1><WorkspaceCostsController organization={organization} workspace={workspace} />
4. Probar la implementación
Inicia el servidor de desarrollo con el siguiente comando:
Terminal window npm run devAccede a la página en tu navegador, por ejemplo:

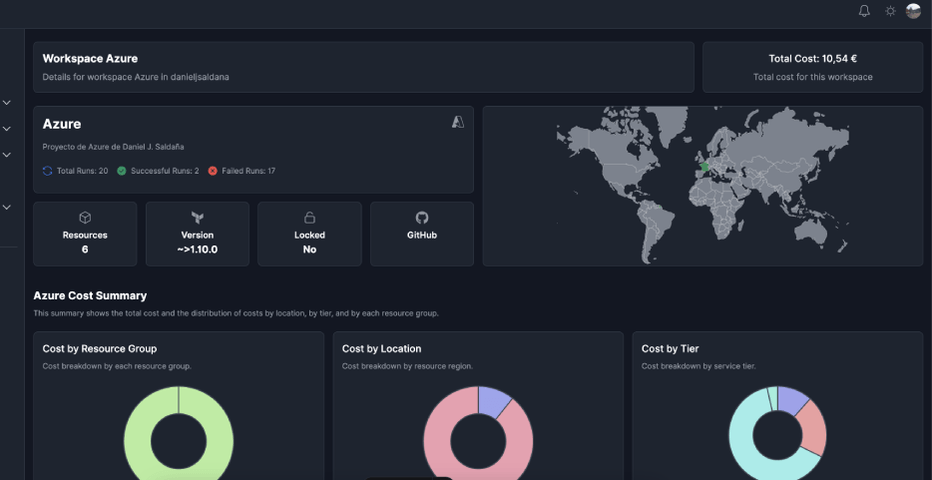

http://localhost:4321/costosDeberías ver los gráficos que muestran los costos de los resource groups filtrados por la etiqueta especificada.
Conclusión
Esta solución permite monitorear y visualizar los costos de Azure de una manera eficiente, enfocándose en aquellos resource groups que cumplen con criterios específicos a través de etiquetas. Esto facilita la gestión de recursos y la optimización de costos en proyectos complejos.
Si te interesa una herramienta integral para gestionar tus despliegues de Terraform y visualizar costos en Azure, te invito a explorar el proyecto Goliat - Dashboard, una plataforma de código abierto diseñada para optimizar tus operaciones de infraestructura.
